ENG- It is possible to test the tensile/compressive strength and bending of various materials such as plastic, metal, and rubber.
- It is also possible to test peeling if a separate option is applied.
Reliability / Durability / Training & Scientific Equipment

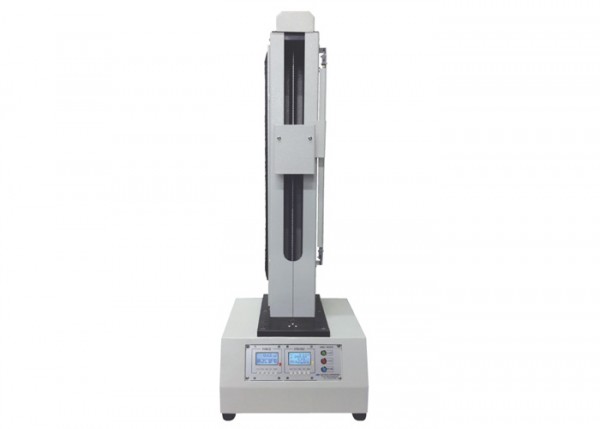

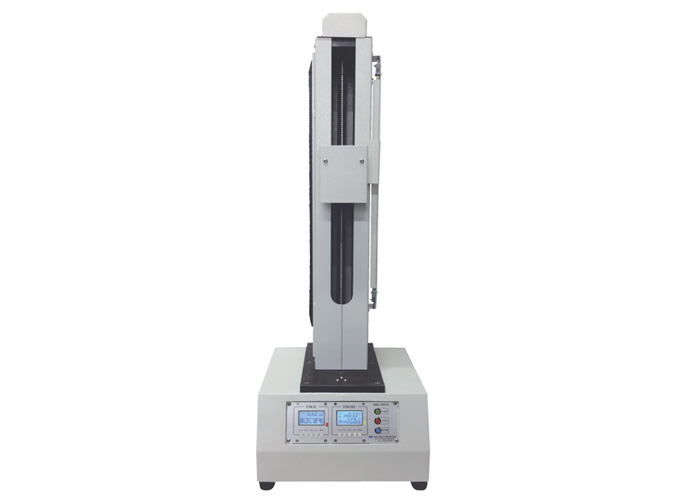

Digital Tensile Tester
Feature
- The motored controlling method secures a high level of speed and transport precision. (proper for elongation testing as well)
- It is highly stable owing to the solid structure.
- Steady movement test.
- Test data are transferred automatically to a PC. Automatic operation is possible in line with the dedicated software program’s standards.
- A separate jig is produced for each specific sample type.
- Testable items
- Test results: Load-displacement test, time test, elongation test.
- Tensile strength, cross section, elongation, yield point, yield strength, compressive strength, flexural strength
- Classification: Tensile test, compression test, bending test (testing based on the displacement or load)

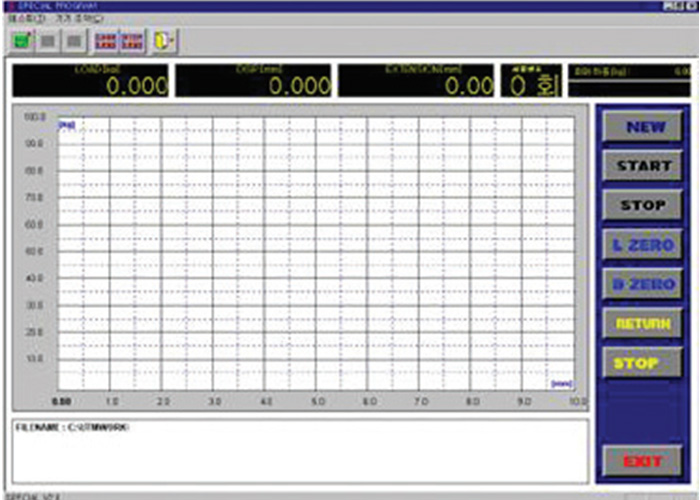

- Dedicated software program
- The Windows program is easy to manipulate
- Data management in the order of test numbers and sample numbers
- It is possible to manage individual folders for each tester.
- It is possible to apply test data to other office programs such as Excel by converting them into a .txt file*.
- It is possible to load a maximum of 10 test results in one screen for comparative analysis and printing of data in graph.
- It is possible to zoom in/out of graphs for each test analysis.
SPECIFICATION
Scroll left/right.
| Model | ADE-9000S-50K | ADE-9000S-100K | ADE-9000S-200K | ADE-9000S-300K |
|---|---|---|---|---|
| Max. capacity | 50kg | 100kg | 200kg | 300kg |
| Indicator | AND-9000S (Digital LCD) | |||
| Max. stroke | 150㎜ (Distance adjustable) | 300㎜ (Distance adjustable) | 300㎜ (Distance adjustable) | 500㎜ (Distance adjustable) |
| Base Size | 10T 150 x 245㎜ | 16T 260 x 274㎜ | 16T 200 x 300㎜ | |
| Height | Adjustable to 6 different levels at intervals of 30 mm | |||

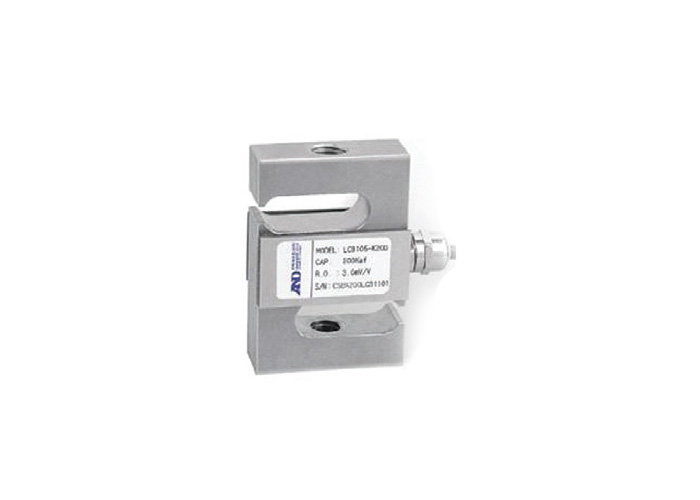

| Load Cell | 50kg | 100kg | 200kg | 300kg |
| Communication | RS-232C as the basic setting | |||
| Dimension (W x D x H) | 280 x 310 x 715㎜ | 280 x 320 x 820㎜ | 400 x 350 x 1,150㎜ | |
| Power | AC 220V, single-phase, 50/60 ㎐ | |||
| Option | RS-485, Program, Jig | |||
- * Basic specifications customizable with different conditions of distance, weight, etc.
- * The external appearance and specifications may be changed for improvements in product performance and as ordered without prior notification.
- * For special specifications other than those stated above, customized production is possible based on advance consultation.
