ENG- Observe the effects that occur on the specimen, such as warping, expansion, cracking, color change, wrinkles, cracks, and gloss changes of the specimen depending on the temperature of the oil. With precise temperature control, it can be used in pharmaceutical, medical, biochemistry, and chemical tests.
Reliability / Durability / Training & Scientific Equipment

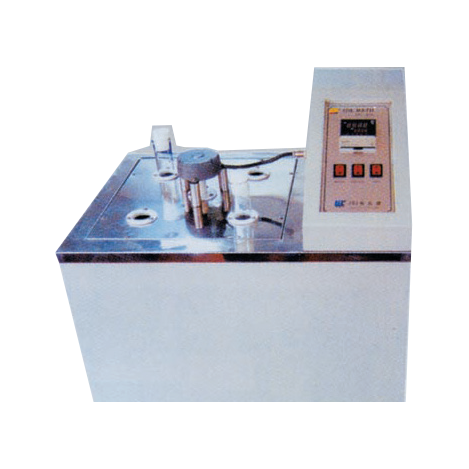

Oil Bath
Feature
- Possible to keep the temperature range of 100℃~250℃ which cannot be raised by general WaterBath by using oil instead of water
- Resistant to corrosion and high temperatures by using stainless steel
- Using ceramic fiber, it has excellent insulation and heat retention and is safe to handle
- Safety device to prevent overheating and overcurrent
- Precise temperature adjustment
SPECIFICATION
Scroll left/right
| Model | AD-95 | AD-97 |
|---|---|---|
| Size / Bath (W x D x H)mm | 360 x 540 x 250mm(IN) | 600 x 700 x 400mm(IN) |
| Heater | 2KW | 3KW |
| Type | Circulation Type | |
| Temp' / Range | 250℃, Max(Actual use temperature / Less than 230℃ recommended) | |
| Controller | Microprocessor PID Multi - Function Controller | |
| Display | PV & SV Dual Display | |
| Timer | 99h 59m | |
| Material / Chamber | Stainless Steel 304 | |
| Cabinet | Steel Plate Powder Coating | |
| Safety device | Over Temp', Over Current Protector | |
| Circulation Pump | AC Motor, 1/30HP | |
| Electric Supply | AC 220V 60Hz | |
- * The external appearance and specifications may be changed for improvements in product performance and as ordered without prior notification.
- * For special specifications other than those stated above, customized production is possible based on advance consultation.
