ENG- With hot air circulation drying oven, it can be controlled up to 250℃, and drying, sterilization, and quality control tests are possible. In addition, it is suitable for heat treatment and drying work in production sites and high temperature and heat aging tests in laboratories.
Reliability / Durability / Training & Scientific Equipment

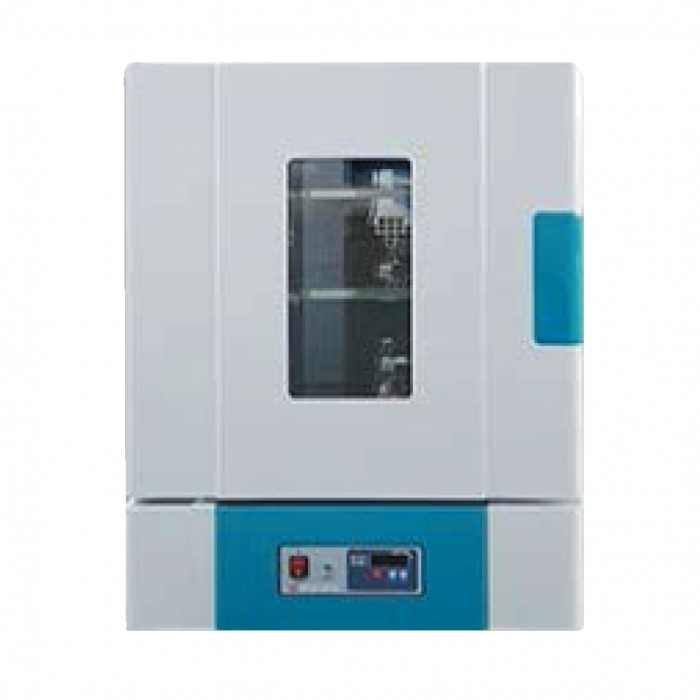

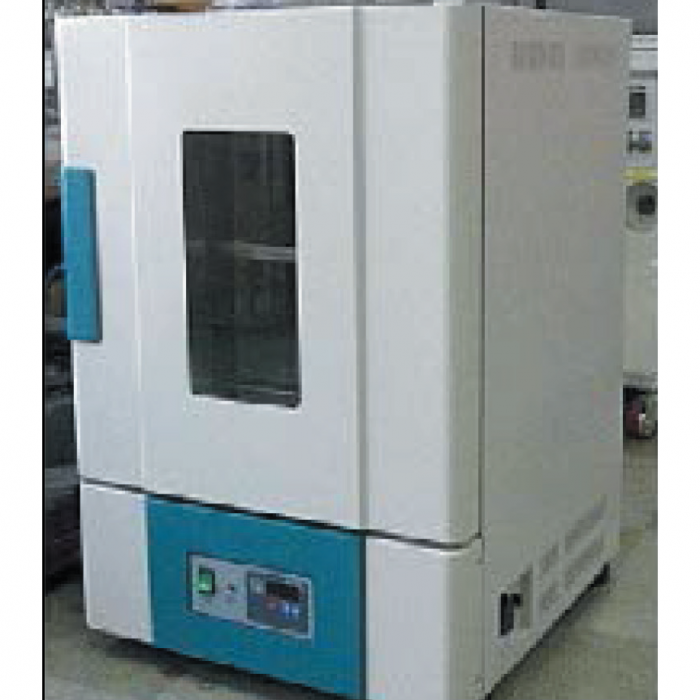

Forced Convection Oven
Feature
- Built-in digital P.I.D controller enables precise temperature control
- Built-in timer, alarm, automatic correction function
- Double-glazed window with tempered glass applied
- Overheating, overcurrent prevention safety device
- Sliding shelf
- Fan motor with low noise
- Adopting stable SSR output
SPECIFICATION
Scroll left/right
| Model | AD-58 | AD-68 | AD-138 | |
|---|---|---|---|---|
| Dimension | Interior | (W)500 x (D)400 x (H)400 mm | (W)600 x (D)500 x (H)500 mm | (W)800 x (D)800 x (H)800 mm (2Set) |
| Exterior | (W)650 x (D)500 x (H)800 mm | (W)800 x (D)860 x (H)1255 mm | (W)1500 x (D)1400 x (H)2200 mm | |
| Material | Interior | SUS 304 2BPLATE 1.0mm(t) | SUS 304 2BPLATE 1.0mm(t) | SUS 304 2BPLATE 1.0mm(t) |
| Exterior | S S41 STEEL PLATE 1.2mm(t), COLOR COATED | |||
| Main Power | Select from AC 220V/380V, 1PH/3PH, 50Hz/60Hz | |||
| Temp Constancy | ± 1.0℃ | |||
| Temp. Range | For low Temp. | 250℃ | ||
| For high Temp. | Select from RT ~ 350℃, 400℃, 450℃, 500℃ /td> | |||
| Insulation | For low Temp. | Glass Wool | ||
| For high Temp. | Selack Wool | |||
| Heater | For low Temp. | Screw Aero Ipe Fin Heater | ||
| For high Temp. | Kanthal Wire Heater | |||
| Vent Hole / Shelf | ø50, ø75 with Damper / Change Eable Shelf (3Stair) | |||
| Safety Devices | ▶Power supply breaker ▶Overtemperature protector ▶Fan motor overload protector ▶BUZZER & ALARM ▶PROTECTION FUSE |
|||
| Controller | P.L.D Digital Controller(Manual Type) | |||
| Option | ▶Program Type Controller ▶Hybrid Digital Recorder ▶Clewing Window(Reinf or Ced Glass) |
|||
- * The external appearance and specifications may be changed for improvements in product performance and as ordered without prior notification.
- * For special specifications other than those stated above, customized production is possible based on advance consultation.
