ENG- It is a hydraulic Brinell hardness tester that tests the indenter of a steel ball by pressing it into a specimen with a constant test load. It is mainly useful for hardness testing of metal materials for castings and cast steel products
Reliability / Durability / Training & Scientific Equipment
Hardness tester
Feature

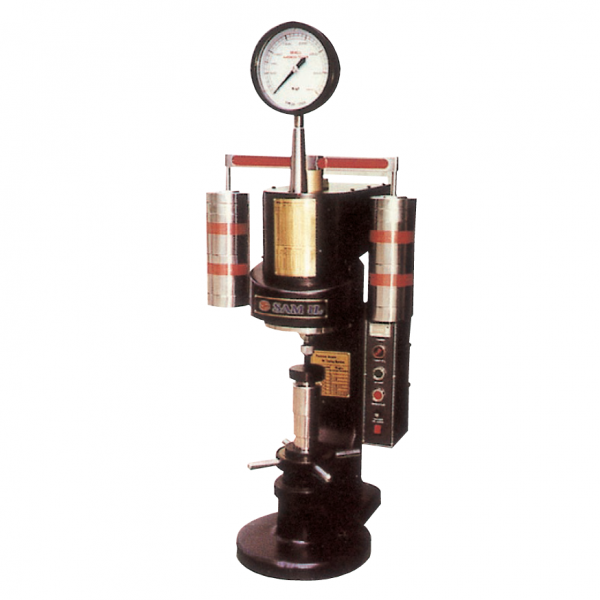

- Brinell hardness tester SB-500 (domestic)
- Easy to measure the average hardness value of non-uniform materials
- Can be tested by randomly selecting test load
- Measurement of samples with relatively unsmooth surfaces such as cast products is possible

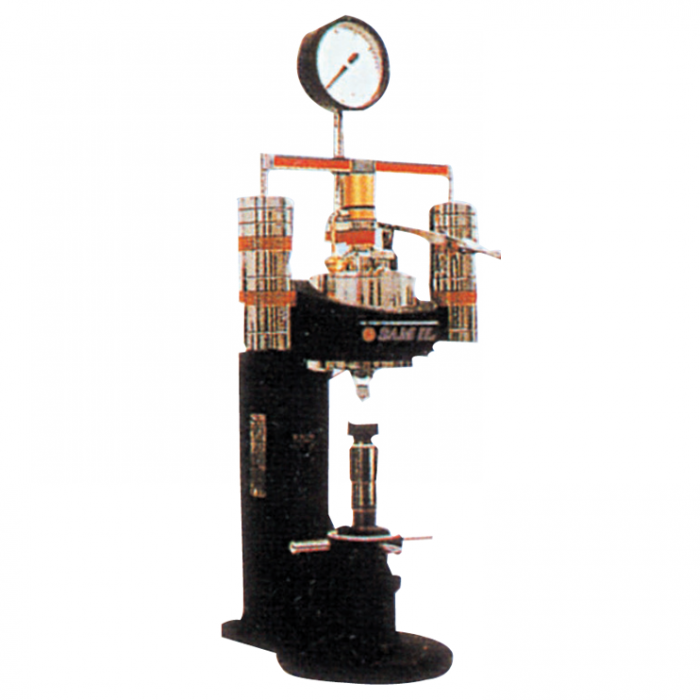

- Brinell hardness tester SB-600 (Auto)
- Simple operation until completion of the test with one touch
- Load maintenance and load removal are automatically operated
- Automatic control of load holding time by digital timer
- In case of continuous operation, measurement time is shortened and no error occurs

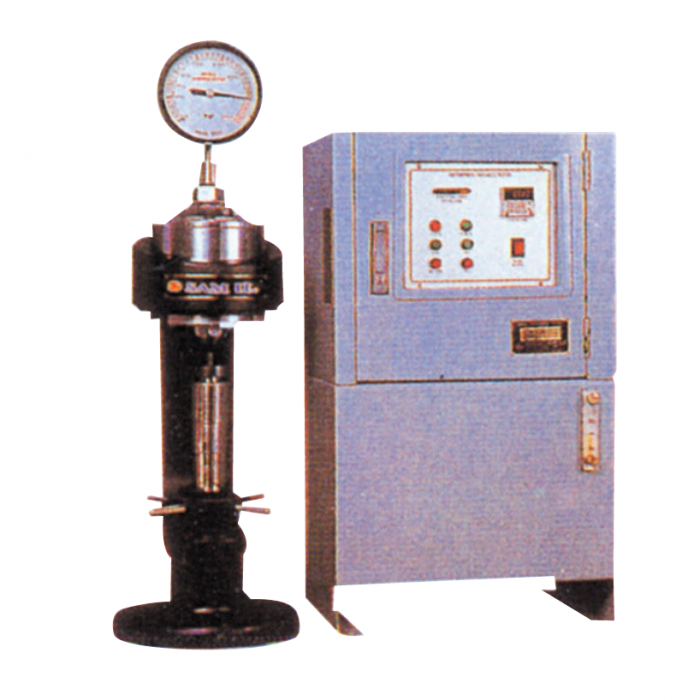

- Brinell hardness tester SB-700 (Full Auto)
- Simple operation until completion of the test with one touch
- Load maintenance and load removal are automatically operated
- Automatic control of load holding time by digital timer
- Load is achieved quickly
- Automatic control of load is possible without weight for load by high-precision automatic valve

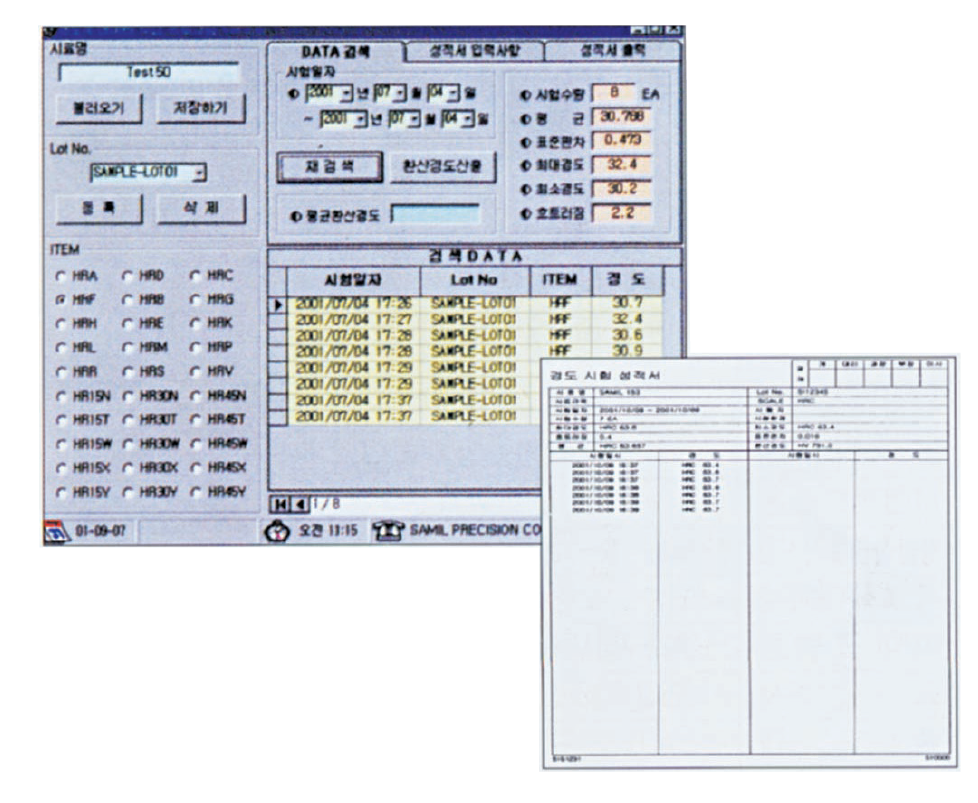

- Durometer data collection software program
SPECIFICATION
Scroll left/right
| Common specification | |
|---|---|
| Test load | 500, 750, 1000, 2000, 3000 (kgf) |
| Maximum test height | 175mm |
| Demension | 470 x 600 x 1140 mm |
| Weight | approx. 120kg |
| Standard parts | |
| Measuring microscope | 1 EA |
| Steel ball indenter | 2EA (10mm, 5mm) |
| Vinyl cover | 1 EA |
| Test load weight | 8 EA (A, B, C, D) |
| Anvil | 2 EA (Flat Anvil, V Anvil) |
| Spare steel ball | 5 EA (10mm, 5mm) |
| Steel box | 1 EA |
- * The external appearance and specifications may be changed for improvements in product performance and as ordered without prior notification.
- * For special specifications other than those stated above, customized production is possible based on advance consultation.
