ENG- It is used when making a specimen by cutting the sample without tissue deformation. It is a manual type cut-off machine and is most widely used. As one of the specimen pretreatment equipment, this equipment is for cutting polished specimens
Reliability / Durability / Training & Scientific Equipment

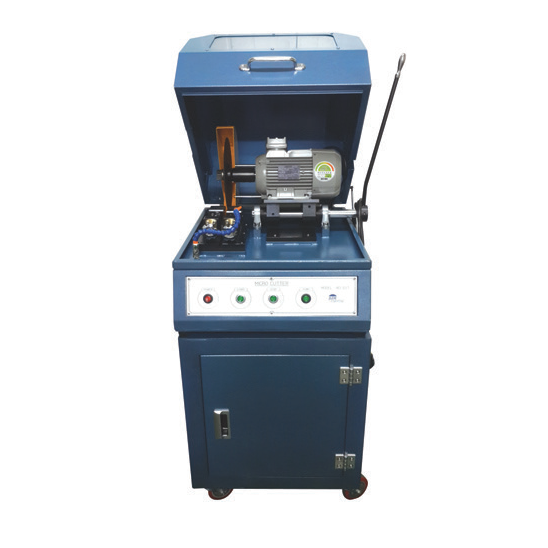

Micro Cutter
Feature
- Cutting range can be expanded by selecting Abrasive Wheel according to material
- Precision cutting with low speed precision cutter
- The desired surface can be obtained by cutting using gravity without physical force
- The specimen is fixed and the cutting edge is cut from top to bottom, so the specimen cutting is stable and smooth, and the cutting speed is high
SPECIFICATION
Scroll left/right
| Model | ADE-119B | |
|---|---|---|
| RPM | 1750rpm | |
| Motor | 2HP | |
| Power transmission | Direct connection | |
| Vice transfer method | Handle type | |
| Cooling water | approx. 30L / coolant used | |
| Cutting Wheel Size | 255mm(1.2 ~ 1.4T) | |
| Wheel bore size | ø25 | |
| Cutting ability | Max. ø80 | |
| Dimension | 645 x 700 x 620mm (W x D x H) | |
| Power | AC 220V, 3P, 50/60Hz | |
- * The external appearance and specifications may be changed for improvements in product performance and as ordered without prior notification.
- * For special specifications other than those stated above, customized production is possible based on advance consultation.
