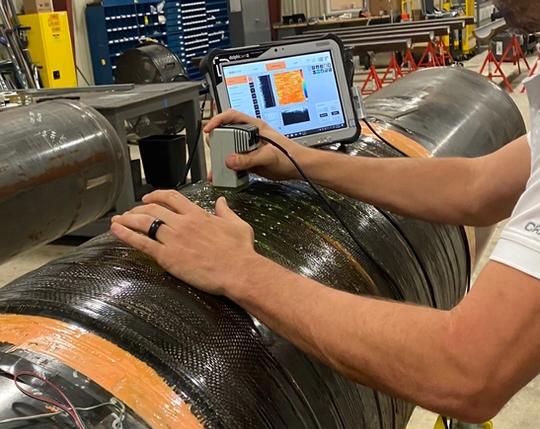

Dolphicam2 is an ultrasonic non-destructive testing solution capable of high-resolution and high-precision measurement of a wide range of materials, including carbon composites, composites, and metals.
The simple and user-friendly Dolphicam2 platform allows anyone to easily create real-time material analysis images and make quick decisions.
You can easily receive Dolphicam2's advanced solution through K-Albatross, Dolphitech's official Korean partner.

Dolphicam2 / Dolphicam2+

Ultrasonic Non-Destructive Testing Solutions

Consisting of 128x128 cross-electrodes, the transducer module generates 16,384 individual ultrasonic echo grids in an area of 32x32mm to detect even the smallest defects.

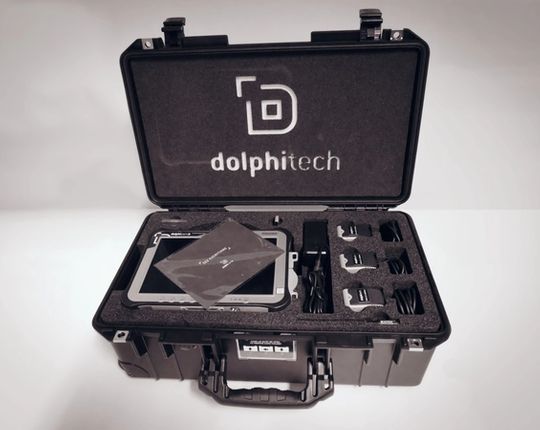

All cables and accessories necessary to use the Dolphicam2 platform, including black box, tablet and system operating software are included.
Transducer modules with different frequencies from 1.5 MHz to 10 MHz allow you to inspect a wide range of materials.

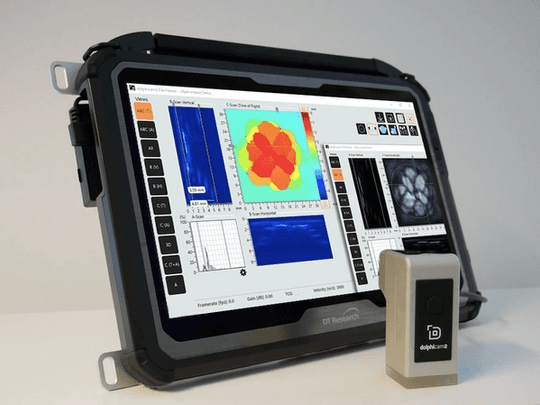

It maps the scanned image to provide A-Scan, B-Scan, C-Scan and Time of Flight (ToF) images across the entire area.

SPECIFICATION

Scroll left/right

Dolphicam2 Core Unit
SIZE AND WEIGHT	Weight	2.65kg
	Size (total)	300 x 188 x 70 (mm)
	Size(black box)	200 x 130 x 32 (mm)
TECHNICAL DETAILS	Transducer ports	USB C * 2
	Other connections	Ethernet
	Battery	6 - 8 hours
	Ingress protection	IP65
	PC/Host Port	USB C
SPECIFICATION	Data transfer rate	Up to 3.2 Gbit/s depending on transducer settings
	Effective data acquisition rate	30 full data sets (128x128 A-scans) per second with typical settings
	Data processing	Low pass filter, data sampling, Total Focusing Method
	Visualization	Single element signals (A-scans), vertical cross sections (B-scans), horizontal cross sections and material thickness mappings (C-scans) and 3D
	Adjustable settings	Measurement unit, material depth, gating, material sound velocity, transmit pulse shape, gain, filtering and averaging, time corrected gain, color palette
	Statistical data	Mean (+Std. Deviation), Median, and Mode
	Data file format	Open, HDF5 based file format
	Time Corrected Gain (TCG)	0 - 10 dB/μs
	Digital Gain	+50dB
	Averaging	1 - 16
	Delay	1 - 82 μs
	Depth	1 - 120 mm @6,000 m/s
	Velocity	100 - 20.000 @ 6,000 (list of velocity)
	Gates	3 separate gates
	Amplitude threshold	Threshold for each gate
	Capture method (for C-scan)	Max Absolute / Negative / Positive
	A/B Scan Mode (RF)	Full, Absolute. Envelope
	Color palettes	(Jet, gray, grav-inv, autumn bone, winter, rainbow, ocean, summers, spring, hsv, pink, hot, customizable)
	Image filter	None, gaussian, median

Scroll left/right

Transducer Module(TRM)
		TRM 1.5MHz	TRM 2.5MHz	TRM 3.5MHz	TRM 5MHz	TRM 8MHz	TRM 10MHz
SIZE AND WEIGHT	Width	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch
	Length	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch	40mm / 1.6inch
	Height	84mm / 3.4inch	84mm / 3.4inch	84mm / 3.4inch	84mm / 3.4inch	84mm / 3.4inch	84mm / 3.4inch
	Weight	265g	265g	265g	265g	265g	265g
TECHNICAL DETAILS	Transducer Type Matrix	2D-array	2D-array	2D-array	2D-array	2D-array	2D-array
	Transducer Elements	128x128 (16,384)	128x128 (16,384)	128x128 (16,384)	128x128 (16,384)	64x64 (4,096)	64x64 (4,096)
	Transducer Aperture	32x32 mm	32x32 mm	32x32 mm	32x32 mm	32x32 mm	32x32 mm
	Element Pitch	250 ㎛	250 ㎛	250 ㎛	250 ㎛	250 ㎛	250 ㎛
	Center Frequency	1.5 MHz	2.5 MHz	3.5 MHz	5 MHz	8 MHz	10 MHz
	-6dB Frequency Bandwidth	110%	90%	100%	120%	120%	115%
	Sample Rate	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
	Acquisition Rate	A-scans 100,000 – 500,000 datasets per second / 3D 10-40 3D volumes per second
