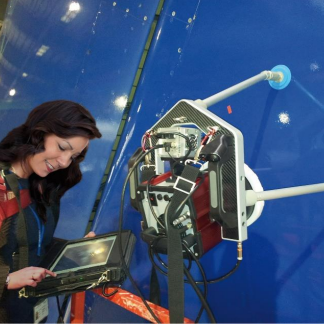

ENG- C-CheckIR is a mobile thermal imaging NDT system for inspection of composite materials.
- Stimulate the sample with halogen excitation and scan the inner sphere and inhomogeneity in the thermal image sequence.
- Various types of structures can be scanned and analyzed using thermal X-rays to provide the best performance.
C-CheckIR
Thermal image NDT
Feature
- Non-destructive, non-contact inspection
- Short measurement time
- Ease of use, intuitive user interface
- Optimized for portable inspection
- Sample preparation unnecessary interface
- Optimized for portable inspection
- No sample preparation required
SPECIFICATION
| Classification | Major Specifications |
|---|---|
| Inspection area | 430mm x 340mm |
| Operating Distance | 400mm |
| Control Unit | 13" Tablet PC with Multi-touch Application |
| detector | uncooled LWIR |
| thermal Sensitivity | 20mK |
| Excitation source | halogen 1.9/2.3kW |
| Power supply | 11VAC 1.9kW / 230VAC, 2.3kW |
| Pressured air supply (When suction cups are used) |
>4bar |
| Weight of Measurement head | 6kg |

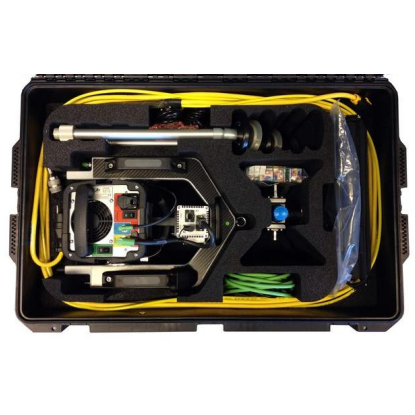

| Weight of complete system in transport case | 21kg |
